30KVA Water-Cooled Diesel Generator Set Can Be Used For Pasture
product presentation:
A water-cooled diesel generator set is a generator set that uses a water-cooled system to cool the engine. Typically, this type of generator uses a liquid-cooled circulation system in which the circulating coolant is fed through a water pump to the engine cooler and water tank, and then heat is dissipated through a radiator to keep the engine temperature within normal limits. The water-cooled diesel powered generator set generally has the following characteristics:
1. Good heat dissipation effect, suitable for high temperature, high altitude and other environment.
2. Long engine life, stable cooling system, can run for a long time.
3. Low noise, small vibration, good operation stability.
4. The machine is small in size, light in weight and easy to move.
Therefore, the water-cooled diesel generator set is widely used in industrial, commercial, agricultural, construction and other fields, and can be used for backup power, conventional power and remote power supply and other tasks.
| Technical specifiCAT-parts-partsion parameters of 30KW series diesel generator set |
| Unit model | GSA-D49 | Rated power | 30KW |
| Rated output voltage | 230V/400V | Rated power factor | 0.8 |
| Rated current | 54A | Insulation grade | H |
| Rated speed | 1500/1800rpm | Protection grade | IP22 |

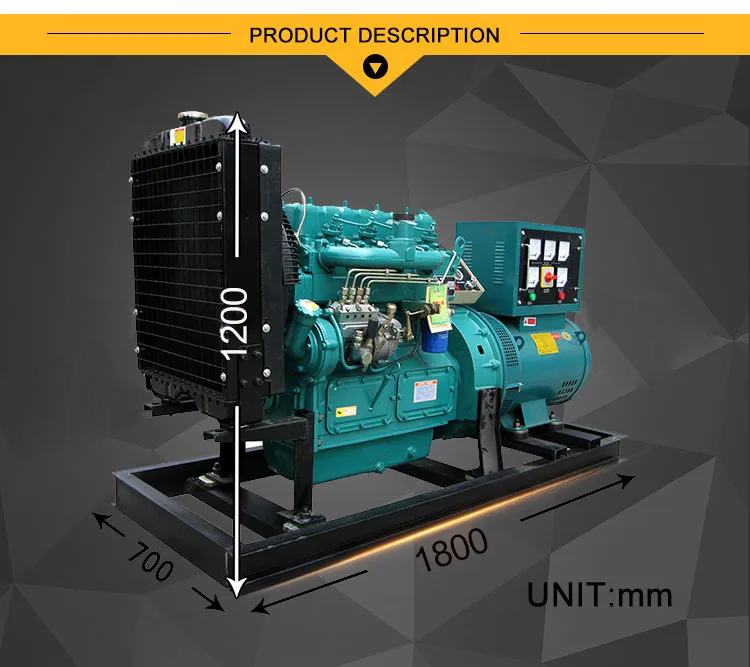

| Rated frequency | 50/60HZ | Overall dimension (mm) | 1800*700*1200 |
| Voltage Control Methods | AVR | Overall weight | 500KG |
| Technical specifiCAT-parts-partsion parameters of diesel engine |
| Brand | Leiteng | Model | K4100D |
| Cylinders | 4 | Speed | 1500/1800rpm |
| Bore * stroke(mm) | 100*115 | Power | 30.1KW |
| Displacement | 3.6 | Fuel consumption rate | 209g/kwh |
| Type | Straight line, four stroke | LubriCAT-parts-partsion mode | Pressure and splash type |
| Intake mode | Direct injection | Start-up mode | 12V DC electric start |
| speed regulation | Mechanical speed regulation | Cooling mode | Closed water cooling |
FQA:
Q1. Any advantages/details about your production?
A. 1. Ten years dediCAT-parts-partsed in diesel generator with rich experience.
2. 15-30 days quick delivery, annual output 20,000sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year or 1000 hours running warranty.
7. Customized & OEM available.
8. One-stop and 7x24 service.
9. Excellent technical support and service.
Q2. How about the warranty period?
A. Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
Q3. How about your production capacity?
A. The company owns more than 230 production equipment, covers an area of more than 60 acres, workshop30,000 square meters and office building covers an area of 2000 square meters. In addition, the annual production capacity of 20000 diesel engines and 6000 generator sets.
Q4. How about your delivery?
A. Company can guarantee the 7-15 days delivery time. At the same time, the company equips with a professional container packing team, which can provide professional, fast and safe packing services.
